Future Smart Grids will strongly rely on remote sensing and Information Communication Technologies (ICT) for their day to day operation. Through a complex and highly sophisticated layer of sensing and ICT technologies, Smart Grids can increase their on-line system awareness allowing them to operate more securely and reliably, while at the same time safely increasing the penetration of sustainable energy sources and reducing carbon emission.

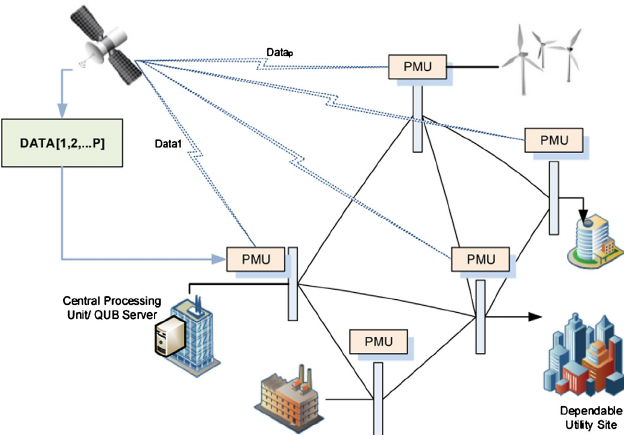

One of the most advanced and accurate tools available today are synchrophasor technologies that use monitoring devices called Phasor Measurement Units (PMUs)1. These units can be installed in remote locations to measure the instantaneous voltage, current, and frequency, and provide valuable information to the system operator about the status of the system in that area (see Fig. 1 from ref 2). Through a combination of advanced sensing, local processing, and ICT technologies, these units can deliver the required performance (accuracy and speed) to develop a truly Smart Grid.
Unfortunately, the high cost of PMUs has limited their use only in the high-voltage (transmission) networks, leaving the low-voltage (distribution) networks lacking proper sensing tools. As low-voltage networks will be hosting the majority of new renewable energy sources and electric vehicles, there is a need to increase the sensing capabilities of these systems. Thus, low-cost alternatives to the PMU are currently being developed, the microPMUs (µPMUs)345. These are devices with lower capabilities but still very powerfull sensing capabilities, at a significantly smaller price and size, targeting low-voltage grids.

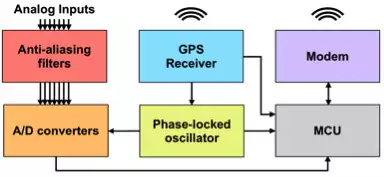

In this project, you have to join your skills as a group to develop a low-cost µPMU. This will involve understanding the critical functionality of µPMUs in the future sustainable energy systems, designing a complete µPMU based on the methodology of 6, sourcing the appropriate material, and building a complete low-voltage prototype.
Additionally, you should provide a plan to create miniaturised version of the µPMU that can be easily added to any household without being bulky or visually offending.
- A complete literature and market review including a comparison between different existing µPMU technologies.
- A complete design of an affordable µPMU.
- A working prototype of a µPMU.
- (Bonus) A plan to create a miniaturised version of the µPMU (techniques to be used, example hardware, initial designs, etc.).
- (Bonus) An online cloud platform to receive and display the µPMU data.
- All the code developed should be documented and published on GitHub under an MIT License7. The final code (along with all other supplementary files) should be published on Zenodo and the DOI included in the final report8.
